Brand Name : GNEE
Certification : SGS
Place of Origin : China
Price : Negotiable
Payment Terms : Negotiable
Supply Ability : 100 ton/week
Delivery Time : 5-9 working days
Packaging Details : Sea-worthy packing, ie wooden or steel tray with steel strip,etc

| Product name | Colled Rolled Steel Sheet/Plate/Coil | |||||||
| Grade | DC01,DC03,DC04,DC05,SPCC,ST12,ST13,ST14,ST15,ST16 SPCC SPCD SPCE SPCF | |||||||
| Surface | Bright,Matt | |||||||
| Processing Service | Bending,Welding,Decoiling,punching,Cutting | |||||||
| Thickness | 0.30mm-3.0mm | |||||||
| Width | 800mm-1500mm or asCustomerrequired | |||||||
| Standard | ASTM, GB, EN, BS, JIS, Etc | |||||||
| Usage | Automobile manufacturing, home appliances (washing machines, refrigerator shells), office furniture, computer chassis and cabinets, general stamping parts | |||||||
| PAYMENT TERMS : | 1.100% irrevocable L/C at sight. 2.30% T/T prepaid and the balance against the copy of B/L. 3.30% T/T prepaid and the balance against L/C | |||||||
| Packing | 1.Big OD:in bulk 2.Small OD:packed by steel strips 3.woven cloth with 7 slats 4.according to the requirements of customers | |||||||
| Delivery Time | Delivered within 3-7 days after the receipt of deposit | |||||||
| DeliverableGrade | ||||||||
| Standard | Q/BQB 408 | JIS G3141 | JFS A2001 | EN 10130 | DIN 1623 | ASTM A1008 | GB/T 5213 | ISO 3574 |
| Grade | BLC | SPCC | JSC270C | DC01 | St12 | CS | | CR1 |
| | BLD | SPCD | JSC270D | DC03 | RRSt13 | DS | | CR2 |
| | BUSD | SPCE | JSC270E | DC04 | St14 | DDS | SC1 | CR3 |
| | BUFD | SPCF | JSC270F | DC05 | | EDDS | SC2 | CR4 |
| | BSUFD | | JSC260G | DC06 | | | SC3 | CR5 |
| Standard | Grade | ChemicalCompositionofColdRolledMildSteel(%) | Mechanicalpropertiesofcoldrolledsteel | ||||||
| | | C | Si | Mn | P | S | Yielding Strength (MPa) | Tensile Strength (MPa) | Elongation (%) |
| JISG3141 | SPCC | 0.15 max | - | 0.60 max | 0.10 max | 0.05 max | | | |
| | SPCD | 0.12 max | - | 0.50 max | 0.04 max | 0.04 max | ≤ 240 | ≥ 270 | ≥ 41 |
| | SPCE | 0.10 max | - | 0.45 max | 0.03 max | 0.03 max | ≤ 220 | ≥ 270 | ≥ 43 |
| | SPCF | 0.08 max | - | 0.45 max | 0.03 max | 0.03 max | ≤ 210 | ≥ 270 | ≥ 45 |
| JIS G3141 Surface quality classification: B-finish; D-mirror finish Heat treatment or state: A - annealed; S - tempered , 8 -1/8 hard, 4-1/4 hard, 2-1/2 hard, 1-hard | |||||||||
| EN 10130 | DC01 | 0.12 max | - | 0.60 max | 0.045 max | 0.045 max | 140-280 | 270-410 | ≥ 28 |
| | DC03 | 0.10 max | - | 0.45 max | 0.035 max | 0.035 max | 140-240 | 270-370 | ≥ 34 |
| | DC04 | 0.08 max | - | 0.40 max | 0.030 max | 0.030 max | 140-210 | 270-350 | ≥ 38 |
| | DC05 | 0.06 max | - | 0.35 max | 0.025 max | 0.025 max | 140-180 | 270-330 | ≥ 40 |
| | DC06 | 0.02 max | - | 0.25 max | 0.020 max | 0.020 max | 120-170 | 270-330 | ≥ 41 |
| Surface type: A, B; Surface specification: b=special smooth, g=smooth, m=non-glossy, r=rude Example of plate naming: EN 10130+A1-DC03-B-g where B is the surface type and g indicates that the surface specification is smooth | |||||||||


|
|

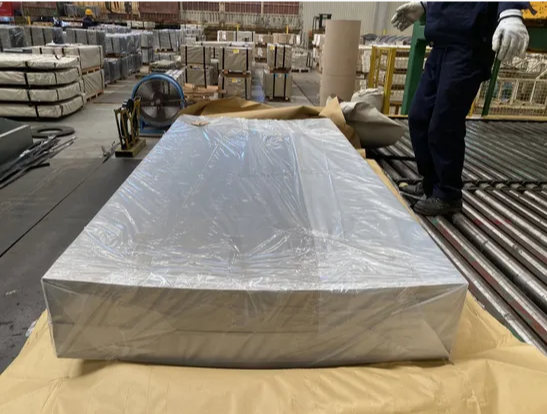

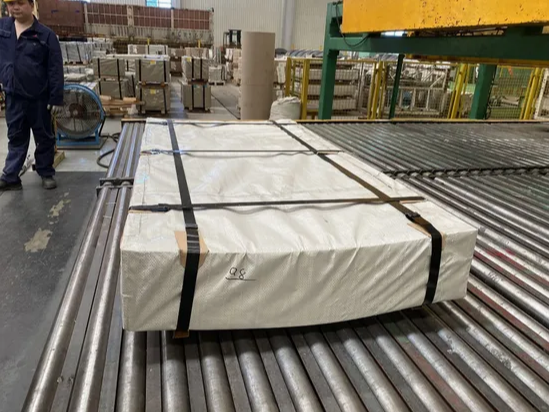

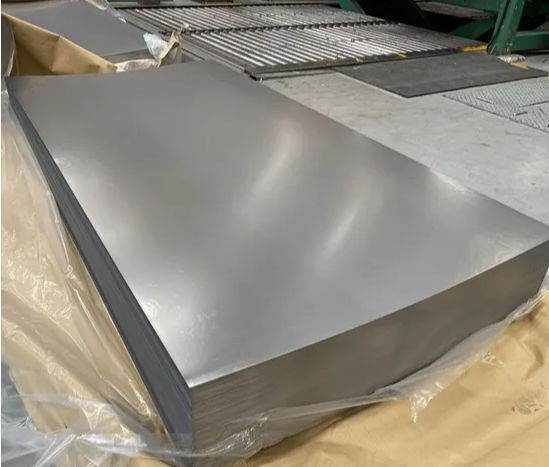

Good Quality A285 Carbon Steel Sheets Steel Plate 0.8mm Cold Rolled Steel Sheet Images |
